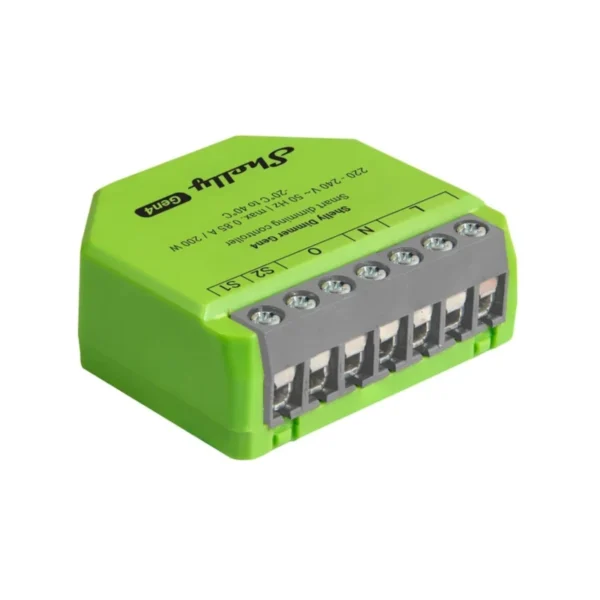

Shelly Dimmer Gen4 – Smart, Flexible Lighting Control

The Shelly Dimmer Gen4 brings advanced smart lighting control into a compact in-wall device that can be installed behind an existing switch. Designed for flexible residential and light-commercial automation, it allows users to control compatible dimmable lights from a physical switch, smartphone, web interface, voice assistant or connected smart-home platform.

For South African homeowners, property managers, electricians, installers and SMEs, the Dimmer Gen4 can be particularly useful when upgrading existing lighting without replacing an entire electrical installation. Its ability to operate with or without a neutral wire provides additional installation flexibility. When operating without neutral and controlling a load below 20 W, the Shelly Bypass is required. (Shelly Europe)

Its multi-protocol connectivity is another major advantage. The device supports Wi-Fi, Bluetooth, Zigbee and Matter, making it suitable for different smart-home ecosystems and giving installers more flexibility when designing automation systems. It can integrate with platforms including Home Assistant, Amazon Alexa, Google Home, Apple HomeKit and Samsung SmartThings through supported Matter integrations. (Shelly USA)

Whether you’re automating lighting in a modern home, upgrading an Airbnb or rental property, improving lighting control in a small office, or creating a connected commercial environment, the Shelly Dimmer Gen4 provides a practical way to add intelligent dimming without requiring a large automation hub.

Key Features & Business-Class Highlights

Multi-Protocol Smart Connectivity

The Dimmer Gen4 is built for modern connected environments. With Wi-Fi, Bluetooth, Zigbee and Matter support, it can adapt to different network and automation requirements rather than locking users into one connectivity standard. (Shelly Europe)

Wi-Fi allows direct network connectivity and remote control, while Bluetooth can simplify local configuration. Zigbee provides another option for compatible smart-home installations, and Matter-certified connectivity helps improve interoperability across supported ecosystems.

For installers working across multiple South African properties, this flexibility can make it easier to accommodate different customer requirements without having to use completely different hardware for every installation.

No Neutral Wire Required

One of the standout features is the ability to operate without a neutral wire. This can be useful when upgrading existing installations where running additional wiring would be inconvenient or costly.

However, the load requirements need to be considered carefully. When the Dimmer Gen4 is used without a neutral wire and the connected load is under 20 W, the Shelly Bypass is required. (Shelly Europe)

As with any mains-powered installation, professional electrical installation should be used where required.

Precise Brightness Control

The Dimmer Gen4 is designed for more than simply switching lights on and off. Users can set minimum and maximum brightness levels and adjust the button fade rate and transition duration to achieve a more controlled lighting response. (Shelly Europe)

This can be useful in offices, reception areas, restaurants, accommodation properties and homes where lighting levels may need to change throughout the day.

Automated Lighting Schedules

Schedules allow lighting behaviour to be automated according to time or routine. The device can also synchronise lighting behaviour with sunrise and sunset, helping reduce the need for manual adjustments. (Shelly USA)

For a South African SME, this could mean automatically adjusting lighting during business hours, while a residential installation could use schedules to create morning and evening lighting routines.

Night Mode

Night Mode allows predefined brightness behaviour during selected periods. Instead of switching a light to full brightness late at night, the system can be configured to provide a more subdued level of illumination. (Shelly USA)

This can be useful in bedrooms, passages, hospitality environments and other areas where full brightness may not always be desirable.

Wide Smart-Home Compatibility

The Dimmer Gen4 can work with the Shelly Smart Control app and supported smart-home ecosystems. Official documentation lists integrations including Home Assistant, Amazon Alexa, Google Home, Apple HomeKit and Samsung SmartThings through Matter. (Shelly USA)

This makes it suitable for both straightforward installations and more advanced automation projects.

Suitable for Different Lighting Loads

The device supports several compatible load types, including dimmable LED lamps up to 150 W, incandescent bulbs up to 200 W, halogen lamps up to 200 W, iron-core transformers with low-voltage incandescent lamps up to 200 VA, and dimmable electronic transformers up to 200 W. (Shelly Europe)

Compatibility should always be checked before installation, particularly when working with specialised lighting equipment.

Compact In-Wall Design

Measuring approximately 38.5 × 43.5 × 17 mm, the Dimmer Gen4 is designed for installation behind switches and in other suitable in-wall spaces. Its small footprint helps minimise the visual impact of the smart controller while retaining the existing switch-based control experience. (Shelly USA)

For property upgrades, this means smart functionality can be added without turning every room into a visibly technology-heavy installation.

Ideal for South African Homes, SMEs & Light Commercial Applications

The Shelly Dimmer Gen4 is well suited to applications where lighting needs to be controlled more intelligently without completely replacing existing switches.

In a home, it can automate bedroom, lounge, passage and outdoor lighting routines. In an SME, scheduled lighting can help create consistent lighting behaviour across offices, meeting rooms or reception areas. For property managers and accommodation providers, smart lighting can form part of a broader connected-property solution.

Electricians and automation installers can also combine the device with other Shelly products to create more advanced automation systems. For businesses already using compatible smart-home or building-automation platforms, its multi-protocol design provides additional integration options.

You can explore more [Shelly smart home products](brand link) or browse the [Smart Home & Automation category](category link) to build a wider connected system.

For installation information, firmware details and technical documentation, visit the official Shelly Dimmer Gen4 support page. (Shelly Europe)

Pros and Cons

Pros

• Compact in-wall design suitable for discreet installations.
• Supports Wi-Fi, Bluetooth, Zigbee and Matter.
• Can operate without a neutral wire.
• Precise minimum/maximum brightness adjustment.
• Adjustable fade rate and transition duration.
• Supports scheduled and sunrise/sunset-based automation.
• Works with multiple popular smart-home platforms.
• Supports a range of compatible dimmable lighting loads.
• Suitable for residential and light-commercial automation.

Cons

• A Shelly Bypass is required for loads under 20 W when operating without neutral.
• Maximum load depends on the type of lighting being controlled.
• It is designed for compatible dimmable loads rather than general-purpose switching of every electrical load.
• Mains installation requires appropriate electrical knowledge and safe installation practices.
• Wireless range can vary depending on building construction, interference and local conditions. (Shelly Europe)

Complete Technical Specifications

*Some protection and measurement functions depend on installation configuration, including use with a neutral wire. (Shelly USA)
