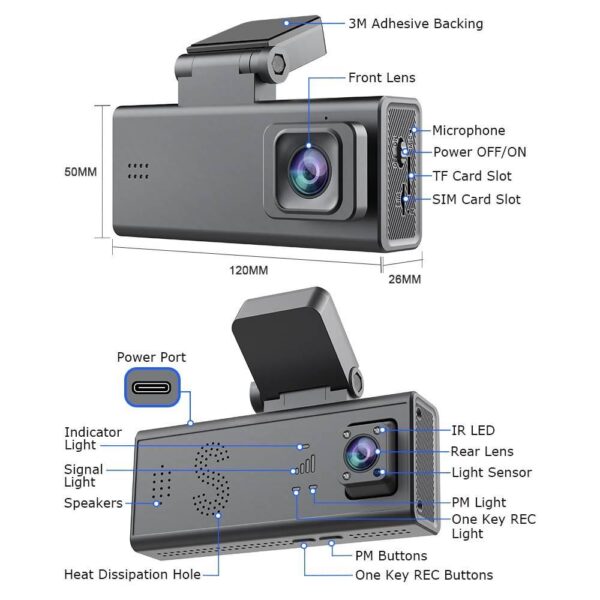

4G CAR DASH CAMERA

4G CAR DASH CAMERA – ST-CC09

Car Guard Camera Parking Guard Mode & Dash Camera Function

Features

Driving Recording?

Parking Guard Mode?

Built-in Super Capacitor

Power Supply

Remote Monitoring

Power Protection

Detection Sensors

Privacy Mode

Ultra-Low Power Design

Specifications

Model: ST-CC09

Image Sensor: 3Mp COMS Sensor 1/2.9 ? 2

Video Resolution: 3MP + 3Mp

Detection Sensors: Front / Rear Microwave Radar + G-Sensor

Privacy Mode: Supported (Toggle Via Privacy Button; Disables Camera Recording And Audio When Activated)

Night Vision: In-Car: 940nm IR; Out-Car: Full-Color Mode

4G Module Bands: Supports EU / Asia / Middle East / Africa / Australia / South & North America?

(Customizable For Specific Regions)

Wi-Fi (AP Mode): AP Hotspot For Playback (Connect Via Smartphone)

Toggle Button Switches Between AP / Normal Modes (AP Indicator Lights Up)

GPS: Built-In; Displays Latitude / Longitude / Speed On OSD & APP (No Trajectory Recording)

Lens FOV: Front: 105 degrees Horizontal; In-Car: 140 degrees Horizontal

Power Supply: Default: Port; Optional: Hardwired To Car Battery

Wake / Sleep Time: Configurable Via APP (5s / 10s / 20s / 30s / Continuous Recording)

Pairing:QR Code / Bluetooth Pairing

OS: Linux

Audio: Built-In Mic (-38dB Sensitivity)

Video Format: H264 /H265

SIM Card: Nano SIM

Buttons: Power Switch (Toggle) + Reset Button

Indicators: Status (Red / Blue), AP, Privacy, 4G Signal (4 Bars)

Storage: TF Card (4GB?64GB) + Cloud Storage

Playback: Event List + Cloud Playback

Two-Way Audio: Support

APP: Ucon (iOS 10.0+/Android 5.0+)

Humidity: =80%RH?

Package Contents

1 x Dash Cam
