No matter what type of card you need to print — from identity and access to membership, event and credit/debit cards — the ZC300 Series card printers will help you do it better, faster, and easier. The elegant engineering of the ZC300 card printer eliminates virtually all pain points associated with card printing. The result is push-button simplicity no matter what you are printing — a single or dual-sided magnetic stripe or contactless cards, in colour or black and white. And with a ground-breaking fits-everywhere design, you can get secure card printing wherever you need it.
The ZC350 delivers the fastest print speed and advanced printing options that allow you to create virtually any card design you can dream up. With support for just about every encoding technology, you can create just about any type of card — credit, debit, identity, access, loyalty, public transportation passes and more. The ZC300 Series — the card printers that deliver it all.
For partners and customers who would like to use a Zebra card printer with their smartcard encoding application, please contact your Account Manager or a Zebra approved smartcard ISV for integration support.
Features:

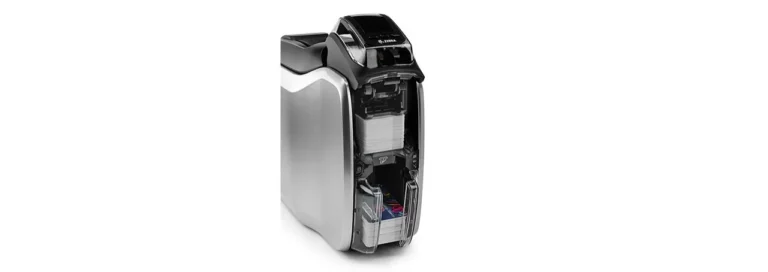

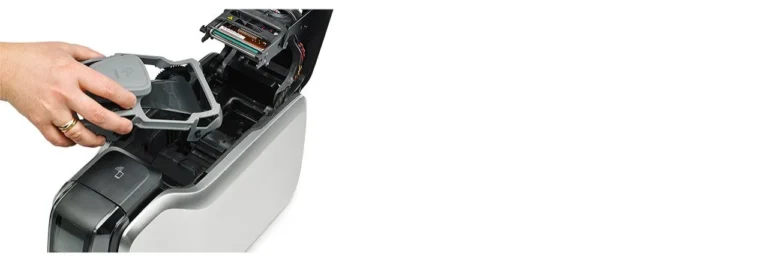

Groundbreaking simplicity: With plug-and-play deployment, instant card feeder adjustment, intuitive icons and a graphical user interface, the ZC300 is easy to integrate, use, and manage. Ribbon changing is virtually fool-proof, and a revolutionary hopper design makes loading and unloading cards easier than ever.
Boundless card design options: The ZC300 is loaded with advanced card production features. Print what you want, when you want, from just about anywhere – single or dual-sided edge-to-edge monochrome and colour cards, with new ribbons that offer speciality colours and special effects.

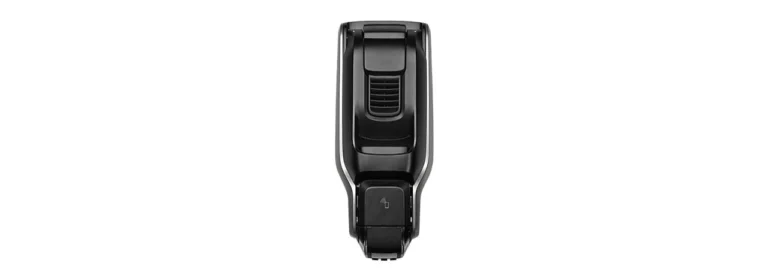

Fits everywhere design: Even though the ZC300 is built for business, it has the consumer good looks required to fit in customer-facing areas – from the corporate office to the university to the retail store. And the printer cover lock provides security by preventing theft of card stock and rejected cards.
Specifications:
Type of Printing
– Dye-sublimation / thermal transfer
Printing Resolution
– 300 dpi (11.8 dots / mm)
Printing Speed
– Seconds / double-sided card
Media Types
– Cards: magnetic stripe, PVC, composite PVC
Memory
– Flash memory: 2 GB
Printer Drivers
– Windows Server? 2003 (32 bit) Windows Server 2008 (32 and 64 bit) Windows 7 (32 and 64 bit) Windows 8 and Win 8 Pro (32 and 64 bit compatible) Windows Server 2012 (64 bit) Windows 10 (32 and 64 bit)

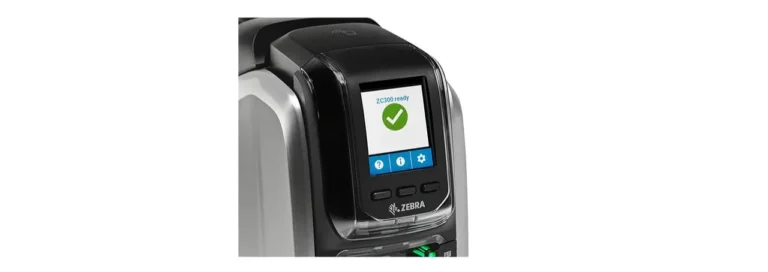

Display
– Yes
Additional Software
– Card Studio
Card Feeder
– Yes
Print Type
– Bilateral
Printing Parameters
– 900 cards / hour (monochrome single-sided printing)? 200 cards / hour (YMCKO one-sided printing)? 140 cards / hour (YMCKOK double-sided printing)? 450 cards / hour (monochrome duplex printing)
Printout
– Monochrome, color
Thickness of Cards
– 0.25-1.02 mm (10-40 mil)
Print from the Edge
– Edge-to-edge printing on standard CR-80 media
Tray Capacity
– 100 card (30 mils) tray with automatic adjustment
Interface
– USB, Ethernet
Colour
– Silver-black
Dimensions
– 258 mm × 157 mm × 468 mm (H × W × D)
Libra
– 4.40 kg
Working Temperature
– 15 ° C to 35 ° C
Storage Temperature
– 5C to 25C (media storage)
Working Humidity
– 20% to 80% non-condensing
Storage Humidity
– 35% to 65% non-condensing
Electrical Parameters
– Single-phase AC power supply with automatic switching? Working range: 90-132V AC and 190-264V AC RMS? Frequency range: 47-63 Hz FCC Class A
What’s in the box

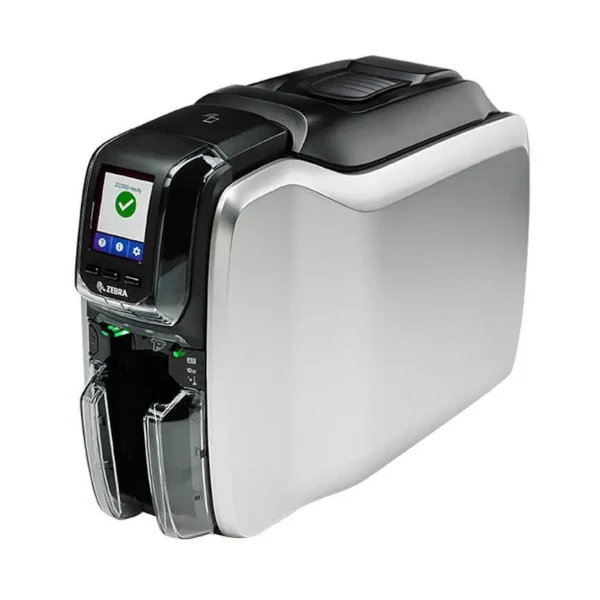

1 x Zebra Technologies ZC300 Series Dual-Sided Card Printer
