THERMAL LABEL PRINTER

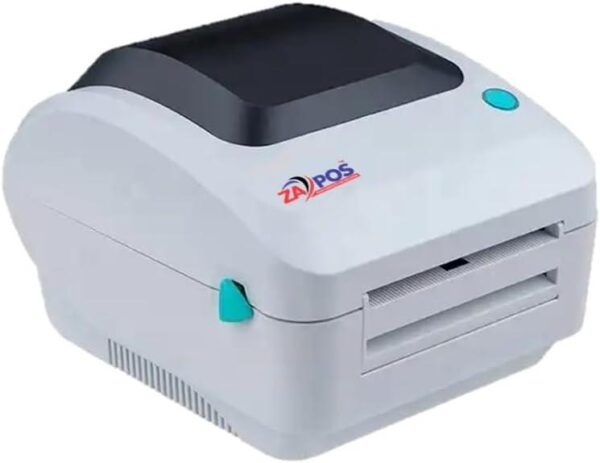

THERMAL LABEL PRINTER – 470B

The Xprinter XP-470B Is A Direct Thermal Label Printer With A Resolution Of 203 DPI

A Maximum Print Speed Of 152 mm/s

And A Maximum Print Width Of 108 mm

It Features USB Connectivity (With Optional Lan / WIFI / Bluetooth)

A 32-Bit RISC CPU, And 4MB Flash + 8MB SDRAM Memory With An SD Card Reader For Expansion

It Is Compatible With Windows, MacOS, And Linux

Specification

Printing And Performance

Printing Method: Direct Thermal

Resolution: 203 DPI

Max Print Speed: 152 mm/s (6″/s)

Max Print Width: 108 mm (4.25″)

Max Print Length: 2286 mm (90″)

Media Type: Continuous, Gap, Black Mark, Fan-Fold, and Punched Hole

Media Width: 20-112 mm (0.78″-4.4″)

Memory And Processor

Processor: 32-Bit RISC CPU

Flash Memory: 4MB

SDRAM: 8MB

Memory Expansion: SD Card Reader For Up to 4GB Of Extra Flash Memory

Connectivity

Standard: USB 2.0

Optional: Lan, WIFI, Bluetooth

Physical Characteristics

Dimensions: 240 mm(W) x 211 mm(H) x 166 mm(D)

Weight: 2.15 kg

Other Features

Power: External Universal Switching Power Supply

Sensors: Black Mark Reflective Sensor And Head Open Sensor

Internal Fonts: 8 Alpha-Numeric Bitmap Fonts

Barcode Support: Supports Various 1D And 2D Barcodes Including Code 39, Code 128, QR Code, And Others

OS Compatibility: Windows, macOS, and Linux
