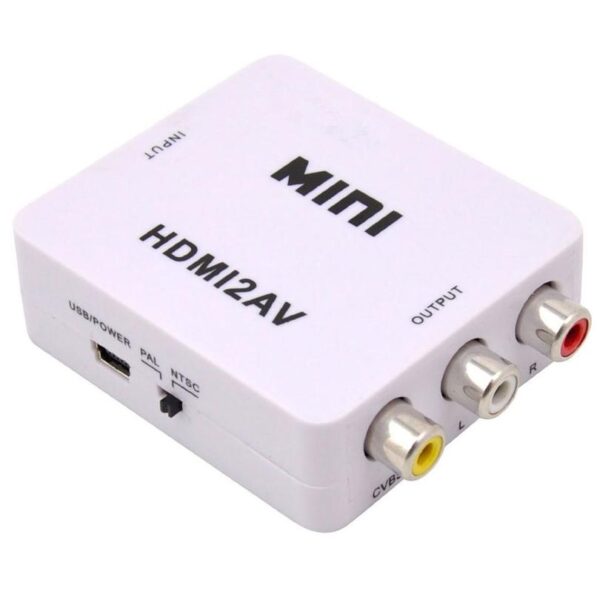

HDMI IN TO AV OUT CONVERTOR

HDMI IN TO AV OUT CONVERTOR – CON012

The MINI HD 2 AV Converter

Which Will Convert HD Video Signal

Or Audio signal to AV (CVBS) composite Video Signal and the FL / FR

Stereo Audio Signals, while Support DVI System Side-Line Signals

To help Users Convert the High Quality of the HD Video Signal

Into normal CVBS Signal (Standard-Definition 480i, 576i,)

So that can play on TV, VHS VCR, DVD Recorders, etc

And Support NTSC and PAL two TV Format

PACKAGE CONTENTS

Main unit (HD to AV Converter) – 1PCS

USB Cable or 5V 1A Power Adapter -1PCS

User Manual – 1PCS

No Need To Install Drivers, Portable, Flexible, Plug and Play

Low Power, No Power Adaptor

Support NTSC and PAL two Standard TV Formats Output

Compatible HD1.3.

SPECIFICATIONS

Input Port: 1 x HD

Output Ports: 3xRCA (Yellow, White, Red)

Dimensions (mm): 66(D) x55(W) x20(H)

Weight (g): 40

HD Input

Resolution

640 x 480 @ 60Hz, 800 x 600 @ 60Hz,1024 x 768 @ 60Hz,1280 x 720 @60Hz

1280 x 1024 @ 60Hz,1360 x 768 @ 60Hz,1600 x 1200 @ 60Hz,1920 x 1080 @ 60Hz

480i / 60Hz, 480p / 60Hz, 576i / 60Hz, 576p / 60Hz,720p50 / 60Hz,1080I50 / 60Hz, 1080p50/60Hz

CVBS Output: PAL, NTSC_M, and (NTSC_J)
