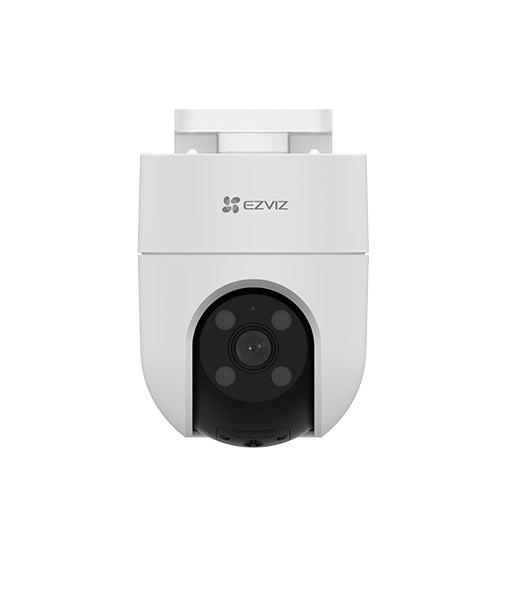

EZVIZ H8C 3MP PT WIFI CAMERA

EZVIZ H8C 3MP PT WIFI CAMERA – E-H8C3MP

H8c

Pan & Tilt Wi-Fi Camera

Specifications

Model: Model CS-H8c (1080P)

Camera

Image Sensor: 1/2.7 Progressive Scan CMOS

Shutter Speed: Self-Adaptive Shutter

Lens: 4mm @ F2.0, Viewing Angle: 46? (Vertical), 89? (Horizontal), 104? (Diagonal) 6mm @ F2.0, Viewing Angle: 28? (Vertical), 52? (Horizontal), 60? (Diagonal)

PT Angle: Pan: 350?, Tilt: 80?

Minimum Illumination: 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ Laboratories)

Lens Mount: M12

Day & Night: IR-Cut Filter with Auto-Switching

DNR: 3D DNR

WDR: Digital WDR

Night Vision Distance: 30 m / 98 ft

Video & Audio

Max. Resolution: 1920 ? 1080

Frame Rate: Max: 30fps; Self-Adaptive during Network Transmission

Video Compression: H.265 / H.264

H.265 Type: Main Profile

Video Bit Rate: Full HD; Hi-Def; Standard. Adaptive Bit Rate.

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 2 Mbps

Network

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz – 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Transmission Rate: 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Wired Network: RJ45 ? 1 (10M / 100M Adaptive Ethernet Port)

Storage

Local Storage: MicroSD Card Slot (Up to 512GB)

Cloud Storage: EZVIZ Cloud Storage (Subscription Required)

Function

Smart Alarm: AI-Powered Human Shape Detection

Customized Alert Area Supports

Two-way Talk: Supports

General Function: Anti-Flicker, Dual-Stream, Heartbeat, Password Protection, Watermark

General

Operating Conditions: -30 ?C to 50?C ( -22 ?F to 122 ?F), Humidity 95% or less (Non-Condensing)

IP Grade: Weatherproof Design

Power Supply: DC 12V / 1A

Power Consumption: MAX. 12W

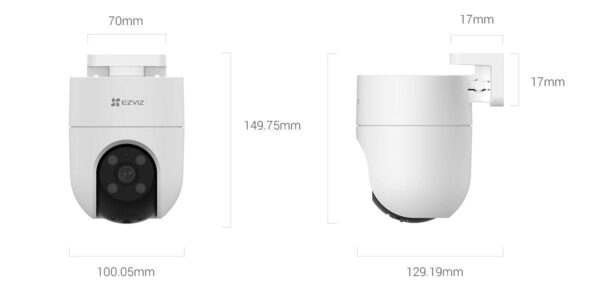

Dimensions: 100.05 ? 129.19 ? 149.75 mm (3.94 ? 5.09 ? 5.9 inch)

Packaging Dimensions: 140 ? 140 ? 192 mm (5.51 ? 5.51 ? 7.56 inch)

Weight (With package): 730 g (25.75 oz)

Net Weight: 420 g (14.8 oz)

In The Box

H8c Camera

Drill Template

Screw Kit

Waterproof Kit

Power Adapter

Regulatory Information

Quick Start Guide

Certifications: CE / FCC / UKCA / UL / WEEE / RoHS / REACH
