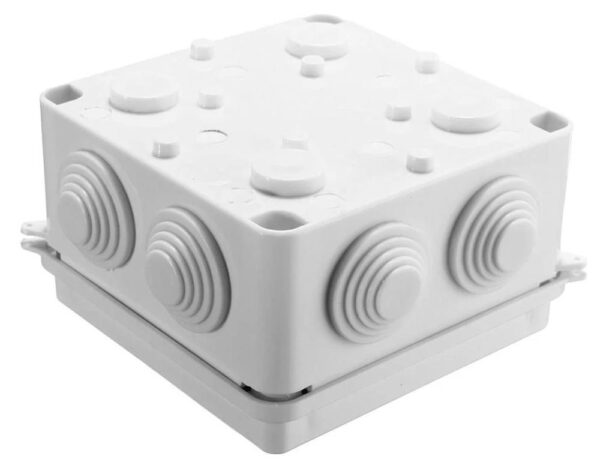

CCTV CAMERA BOX – 100X70
A CCTV Camera Box with the “100 x 70”
Designation Typically Refers To A Waterproof Junction Box
100mm x 100mm x 70mm (Length x Width x Height)
These Enclosures are Primarily used to House Cable Termination
And Protect Camera “Pigtails” From Moisture and Corrosion
Specifications
External Dimensions: 100mm x 100mm x 70mm
Internal Dimensions: Approximately 90mm x 90mm x 65mm to 100mm x 100mm x 60mm
Ingress Protection (IP) Rating: Most common Units are Rated IP65
(Dust-Tight And Protected Against Water Jets)
Material: Typically Constructed from High-Quality ABS plastic or PVC
Often Featuring Rubber Grommets for Cable Seals
Cable Entries: Generally features 7 to 8 Removable Rubber Grommets
(approx. 25mm?26mm diameter) for easy DIY cable routing without cutting
Installation & Features
Mounting: Designed for Surface Mounting on Walls or Ceilings
Durability: Most units are UV Resistant and Impact Resistant, with an Operating Temperature range of roughly -25?C to +55?C
Closure: Typically uses a Press-On or Screw-On Cover secured by four plastic corner screws to prevent rusting
